Available Finish Colors

Black

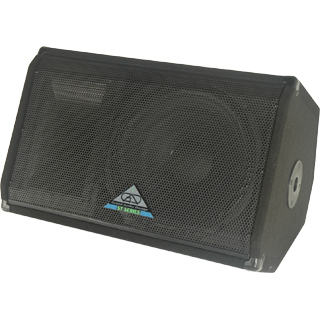

STP-152M™

Description[±]

The GAD™ ST Pro Series products are designed with the aid of the most advanced technologies in the audio field. Sophisticated design and measurement equipment, including computer assisted design software, is used for each design to achieve optimized balance and interface between components to give better quality, performance, and longer life.

The STP Series are built with high-quality materials including: multi-layer void-free plywood construction; T-baffle™ bracing; epoxy powder coated, steel perforated grilles; durable, soil-resistant black carpet covering; black metal corners; and complex second or third-order, optimized crossover networks for matched transition between drivers, with full protection circuitry.

All models carry a five year limited warranty.

Application[±]

The STP-152M is a very versatile loudspeaker perfect for pole-mounting as a small, full-range portable PA system where instruments are added to the mix, or it also has a dual-angle for near or far-field floor monitoring.

Specifications[±]

Power Handling :
(RMS):	300 Watts
(Program):	600 Watts
(Peak to Peak):	1200 Watts

Frequency Response:	50 Hz - 16 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	15" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" VC Compression Driver

Crossover Frequency:	1.8 kHz

Enclosure Type:	Multi-angle

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 17.00" W - 26.50" D - 16.50"
(millimeters)	H - 431.80 W - 673.10 D - 419.10

Product Weight:	50.0 Lbs / 22.5 Kgs

Shipping Dimensions:
(inches)	H -29.25" W -19.00" D -18.75"
(millimeters)	H -742.95 W -482.60 D -476.25

Shipping Weight:	44.0 Lbs / 19.8 Kgs
