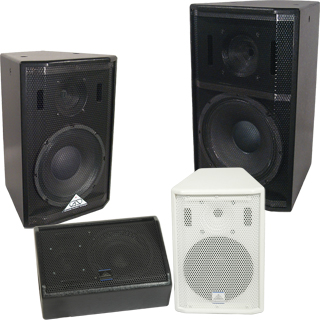

GT 01 Series
Grund Audio ‘01’ Series loudspeakers are optimized for use in houses of worship and other fixed installations as well as being ideal for corporate presentations, meeting and other special events.
All models in the ‘01’ Series utilize 2-way designs with a horn (with the exception of the GT-5301, a 3-way system). Flat frequency response, low distortion, and wide dynamic range are the key attributes of the GT ‘01’ Series. These enclosures are manufactured from 13-ply birch, and are available in black or white finishes as well as unfinished that can be stained or painted to one’s preferences.
All models utilize a horn that is made from 13-ply birch and carved out of the baffle board. These systems utilize a 90° circular horn pattern where a wide energy spectrum is required—enabling these loudspeakers to provide optimized coverage throughout the space. The horn is strictly a wave device. There is no throat loading, which can induce distortion—effectively delivering the purist sound quality physically possible, with quick and accurate focusing of the high frequencies.
The Grund Audio Design GT ‘01’ Series loudspeakers perform well in clusters for that wide and full array dynamic sound—and mounting / installing these systems is accomplished by the availability of Grund Audio Design’s various hardware options. All models can be outfitted with U-brackets, a swivel wall mount, or 3/8"-16 threaded mounting points, enabling installers to position these loudspeakers in a manner that delivers optimized sound quality and the ability to best incorporate the enclosures into the space aesthetically.
Expand Details | ||||||
---|---|---|---|---|---|---|
Model Number |
Drivers | Frequency Response |
Sensitivity | Watt / ohm |
Dispersion H / V |
Dimensions H x W x D |
GT-601 |
LF: 6" Cone HF: 1" Compression Driver |
65 Hz - 20 kHz | 95 dB SPL | 100 / 8 Ω | 90° / 90° | 11.75 × 8.88 × 8.75 |
GT-801 |
LF: 8" Cone HF: 1" Compression Driver |
80 Hz - 19.5 kHz | 97 dB SPL | 150 / 8 Ω | 90° / 90° | 15.50 × 10.75 × 10.75 |
GT-1001 |
LF: 10" Cone HF: 1" Compression Driver |
64 Hz - 19 kHz | 98 dB SPL | 250 / 8 Ω | 90° / 90° | 18.75 × 12.75 × 12.75 |
GT-1201 |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 98 dB SPL | 350 / 8 Ω | 90° / 90° | 23.50 × 14.75 × 14.75 |
GT-1202 |
LF: 12" Cone HF: 2" Compression HF:Plane Wave |
50 Hz - 18 kHz | 99 dB SPL | 400 / 8 Ω | 90° / 90° | 23.50 × 14.75 × 14.75 |
GT-1601 |
LF: 2 × 51-025 HF: 57-032 HF:58-033 |
55 Hz - 19 kHz | 101 dB SPL | 400 / 4 Ω | 90° / 90° | 23.75 × 12.00 × 11.75 |
GT-2002 |
LF: 2 × 10" Cone HF: 2" Compression HF:Plane Wave |
50 Hz - 18 kHz | 101 dB SPL | 600 / 4 Ω | 90° / 90° | 28.75 × 12.75 × 12.75 |
GT-2301 |
LF: 12" Cone MF: 5" Cone HF: 1" Compression Driver HF:Plane Wave |
50 Hz - 18 kHz | 99 dB SPL | 350 / 8 Ω | 90° / 90° | 23.50 × 14.75 × 14.75 |
GT-5301 |
LF: 15" Cone MF: 6" Cone HF: 1" Compression Driver HF:Plane Wave |
40 Hz - 19.5 kHz | 99 dB SPL | 350 / 8 Ω | 90° / 90° | 28.75 × 18.50 × 18.50 |
GT-801M |
LF: 8" Cone HF: 1" Compression Driver |
80 Hz - 19.5 kHz | 97 dB SPL | 150 / 8 Ω | 90° / 90° | 10.75 × 15.50 × 9.75 |
GT-1001M |
LF: 10" Cone HF: 1" Compression Driver |
60 Hz - 18.5 kHz | 99 dB SPL | 250 / 8 Ω | 90° / 90° | 12.63 × 18.75 × 11.75 |
GT-1201M |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 99 dB SPL | 400 / 8 Ω | 90° / 90° | 13.25 × 23.75 × 14.25 |
GT-1202M |
LF: 12" Cone HF: 2" Compression Driver HF:Plane Wave |
50 Hz - 18 kHz | 101 dB SPL | 400 / 8 Ω | 90° / 90° | 13.25 × 23.75 × 14.25 |
GT-1502M |
LF: 15" Cone HF: 2" Compression HF:Plane Wave |
40 Hz - 18 kHz | 99 dB SPL | 400 / 8 Ω | 90° / 90° | 18.25 × 28.75 × 16.88 |
GT-1601M |
LF: 2 × 8" Cone HF: 1" Compression Driver HF:Plane Wave |
55 Hz - 19 kHz | 101 dB SPL | 400 / 4 Ω | 90° / 90° | 10.75 × 23.50 × 9.75 |
