Available Finish Colors

Black


White

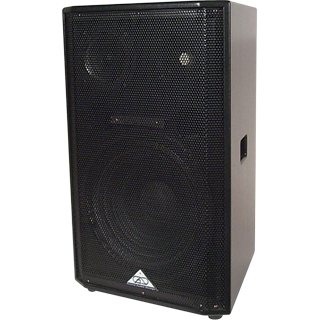

GT-2301™

Description[±]

The GAD GT-2301™ is a three-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-2301™ is available with optional 3/8"-16 threaded mounting points which permits safe, load-rated suspension in permanent installations.

Application[±]

The GT-2301™ is designed for near field / far field applications where a smooth, dynamic range is needed. The GT-2301™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-2301™ boasts a wide-range dispersion for portable A/V events or even for side fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	350 Watts
(Program):	700 Watts
(Peak to Peak):	1400 Watts

Max Output (1W @ 1M):	127 dB SPL

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	12" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
Medium Frequency Driver	5" Cone


Components:
High Frequency Driver	1" Compression Driver
High Frequency Horn	Plane Wave
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	450 / 3 kHz

Enclosure Type:	Trapezoidal 15°

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 23.50" W - 14.75" D - 14.75"
(millimeters)	H - 596.90 W - 374.65 D - 374.65

Product Weight:	49.0 Lbs / 22.1 Kgs

Shipping Dimensions:
(inches)	H -27.00" W -18.25" D -18.25"
(millimeters)	H -685.80 W -463.55 D -463.55

Shipping Weight:	55.5 Lbs / 25.0 Kgs

Available Finish Configurations [±]

	GT-2301-6F
	With Six 2 x 2 Fly Points

	GT-2301-HP
	With handles and pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
