Available Finish Colors

Black


Unfinished


White

GT-1001™

Description[±]

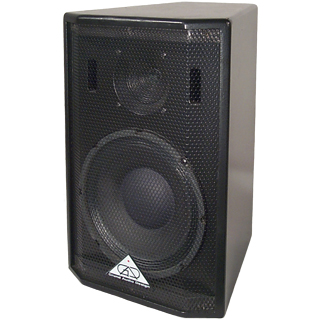

The GAD GT-1001™ is a two-way bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1001™ is available with several installation choices including 3/8"-16 threaded mounting points, a U-Bracket or a swivel Multimount.

The GT-1001™ is designed for near-field applications where a smooth, dynamic range is needed. The GT-1001™ is an ideal choice for either analog or digital reproductions where clear, clean response is a must. The GT-1001™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	250 Watts
(Program):	500 Watts
(Peak to Peak):	1000 Watts

Frequency Response:	64 Hz - 19 kHz

Sensitivity (1W @ 1M):	98 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 90°

Components:
Low Frequency Driver	10" Cone
Magnet Material	Ferrite
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	1" Compression Driver
Horn Material	13-Ply Birch

Crossover Type:	Passive

Crossover Frequency:	2 kHz

Enclosure Type:	Trapezoidal 15°

Enclosure Material:	13-ply Baltic Birch

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	Textured Black

Grille:	Powder-Coated, Perforated Steel

Connectors:	5-Way Binder or Two NL4 Speakon®

Product Dimensions:
(inches)	H - 18.75" W - 12.75" D - 12.75"
(millimeters)	H - 476.25 W - 323.85 D - 323.85

Product Weight:	35.0 Lbs / 15.8 Kgs

Available Finish Configurations [±]

	GT-1001-3F
	With Three 2 x 2 Fly Points

	GT-1001-HP
	With handles and pole mount

	GT-1001-M10
	Wall Mount Bracket - 50 # Capacity

	GT-1001-O
	No Handle or Pole Mount

	GT-1001-U
	With U-Bracket

Compatible Accessories
75-410P Bracket Wall Mount 50 # Capacity Black Sold as Pair	78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
