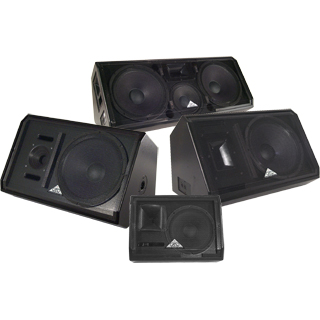

GT Series-Floor Monitors

The Grund Audio Design monitor line-up covers all performance types, from small performance to large concert instrument fill monitoring.

All monitors are dual angle as well as low profile for a clean stage presence. The controlled pattern horns allow high SPL levels before feed back. Grund Audio monitors provide the articulation and punch required in high SPL performance.

Three standard finishes are available: black, white or natural (ready-to-stain). All models are available with optional biamp capability.

The GT-DW32M is ideal for full-mix drum monitoring and side-fill applications. The GT-2420M is popular in the touring circuit as a preferred choice for vocal monitoring.

Expand Details

Model
Number
Drivers Frequency
Response
Sensitivity Watt /
ohm
Dispersion
H / V
Dimensions
H x W x D
GT-1071M LF: 10" Cone
HF: 1" Compression Driver
65 Hz - 16 kHz 97 dB SPL 250 / 8 Ω 90° / 40° 18.63 × 13.63 × 13.38
GT-1210M LF: 12" Cone
HF: 1" Compression Driver
HF:Asymmetrical
50 Hz - 18 kHz 99 dB SPL 400 / 8 Ω 120° / 40°/50°/90° 15.25 × 23.75 × 14.75
GT-1220M LF: 12" Cone
HF: 2" Compression Driver
50 Hz - 18 kHz 100 dB SPL 450 / 8 Ω 40° / 80° 15.25 × 23.75 × 14.75
GT-1510M LF: 15" Cone
HF: 1" Compression Driver
HF:Asymmetrical
40 Hz - 19.5 kHz 98 dB SPL 450 / 8 Ω 120° / 40°/50°/90° 17.25 × 28.75 × 17.88
GT-1520M LF: 15" Cone
HF: 2" Compression Driver
50 Hz - 18 kHz 99 dB SPL 450 / 8 Ω 40° / 80° 17.25 × 28.75 × 17.88
GT-2420M LF: 2 × 12" Cone
HF: 2" Compression Driver
40 Hz - 16 kHz 101 dB SPL 800 / 4 Ω 40° / 80° 15.25 × 34.50 × 14.75
GT-DW32M LF: 2 × 15" Cone
MF: 10" Cone
HF: 2" Compression Driver
40 Hz - 18 kHz 99 dB SPL 800 / 4 Ω 80° / 40° 17.25 × 44.00 × 17.88
GT-CM-22M LF: 50 Hz - 18 kHz 100 dB SPL 450 / 0 Ω 25.75 × 16.44 × 13.06
GT-CM-52M LF: 15" Cone
HF: 2" Compression Driver
50 Hz - 18 kHz 99 dB SPL 450 / 0 Ω 40° / 80° 28.75 × 19.44 × 17.56
GT-SF242R LF: 2 × 12" Cone
HF: 2" Compression Driver
40 Hz - 18 kHz 101 dB SPL 800 / 4 Ω 80° / 50° 15.00 × 36.00 × 14.25
