GT-1220M™

Description[±]

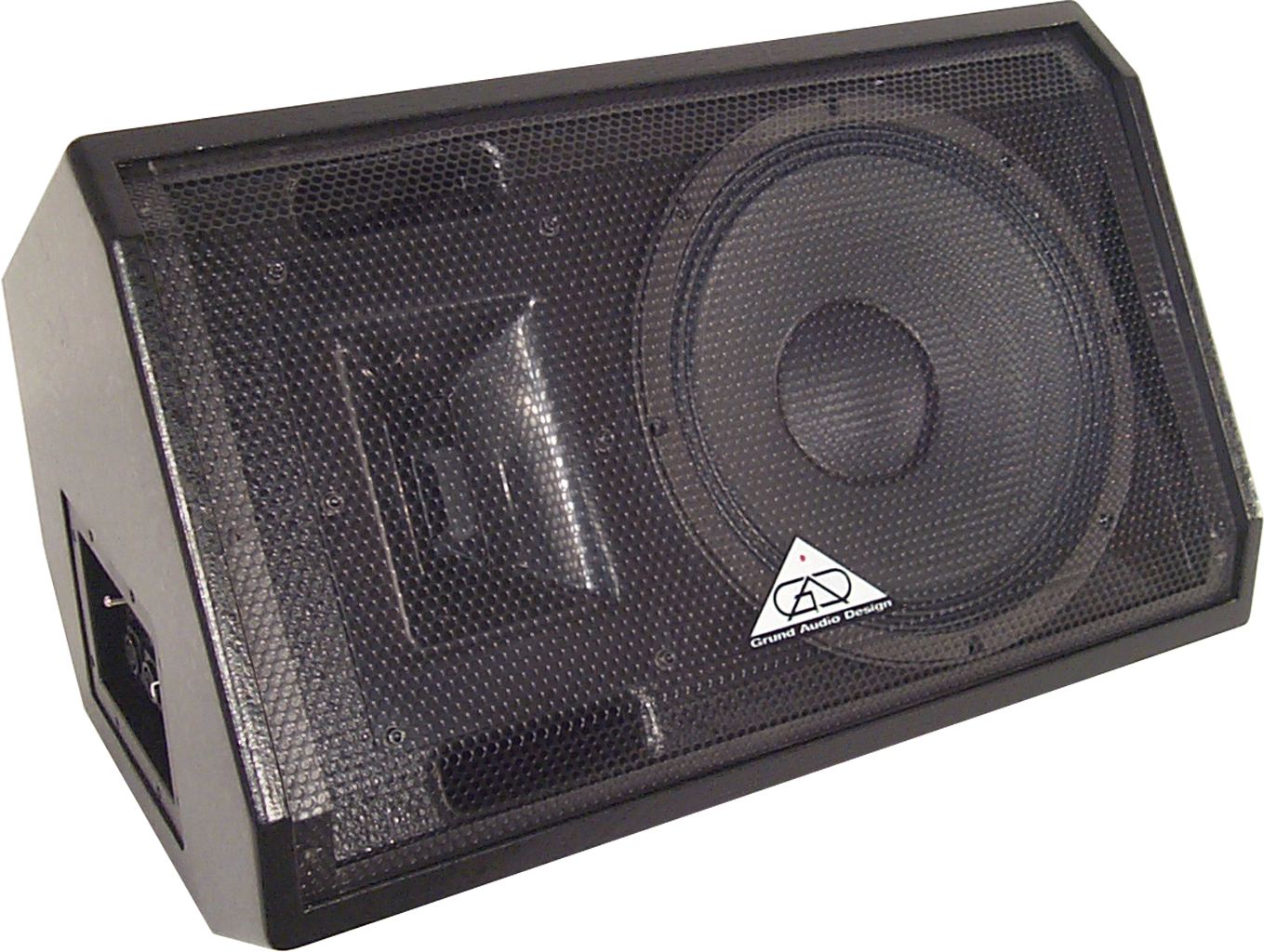

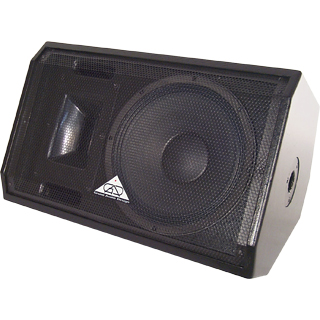

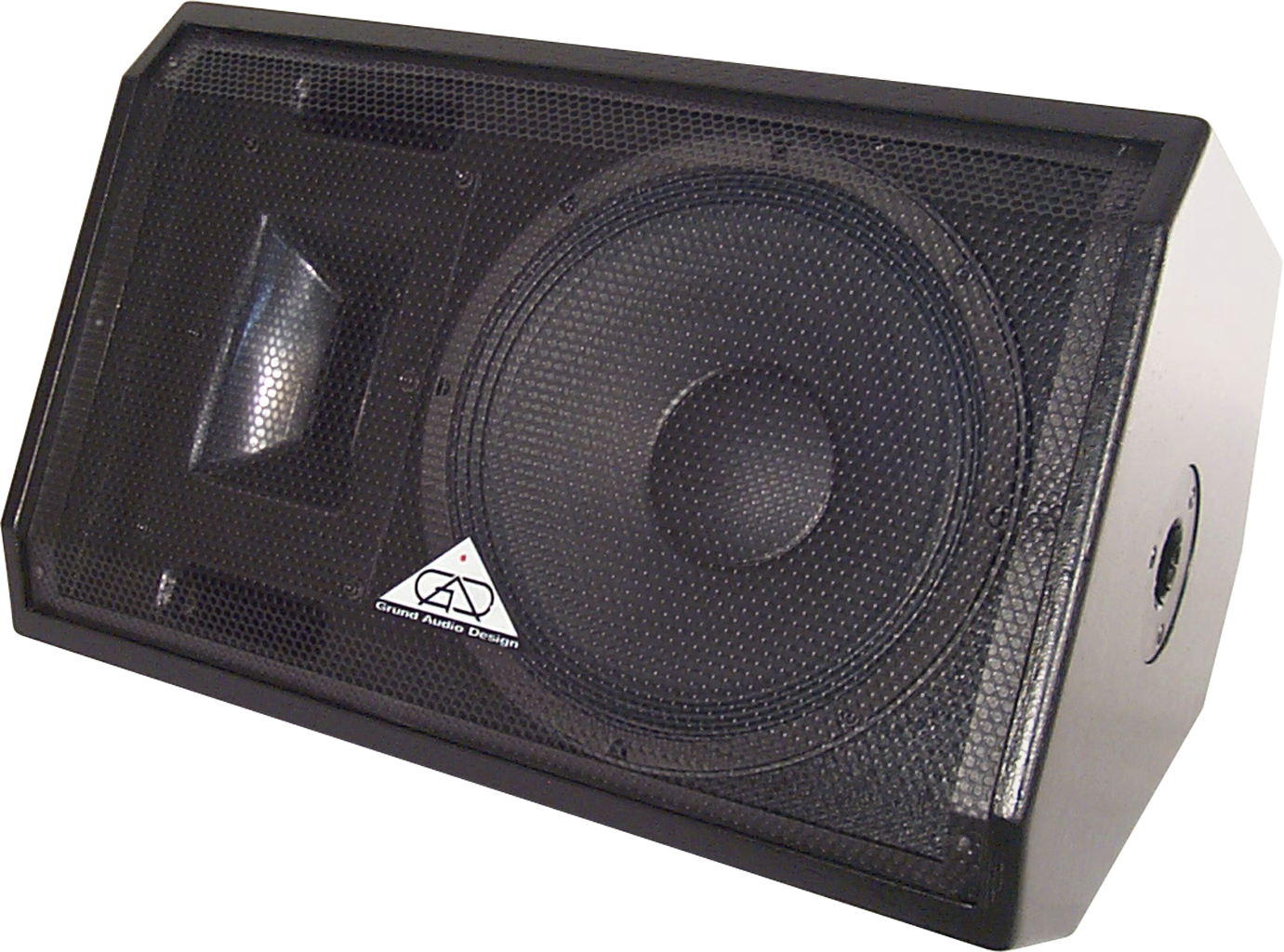

The GAD GT-1220M™ is a two-way, bass reflex, multi-angle loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT1220M™ is available with several installation choices including 2 x 2, 3/8"-16 threaded mounting points.

Application[±]

The GT-1220M™ is designed for near field applications where a smooth, dynamic range is needed. The GT-1220M™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-1220M™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications. The GT-1220M™ is also capable of high output and power for a full stage mix of vocals, drums, and bass guitars.

Specifications[±]

Power Handling :
(RMS):	450 Watts
(Program):	900 Watts
(Peak to Peak):	1800 Watts

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	100 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 40°
	Vertical 80°

Components:
Low Frequency Driver	12" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Multi-Angle

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon® & Biamp Switch

Product Dimensions:
(inches)	H - 15.25" W - 23.75" D - 14.75"
(millimeters)	H - 387.35 W - 603.25 D - 374.65

Product Weight:	58.0 Lbs / 26.1 Kgs

Shipping Weight:	63.0 Lbs / 28.4 Kgs

Available Finish Configurations [±]

	GT-1220M-H
	With handles no pole mount

	GT-1220M-HP
	With handles and pole mount

Compatible Accessories
78-001 Speaker Stand Crank Style 110 # Capacity Black	78-004 Speaker Stand Crank Style 80 # Capacity Black with Carry Bag	BAMP Bi-amp Option	RVR Reverse Image
