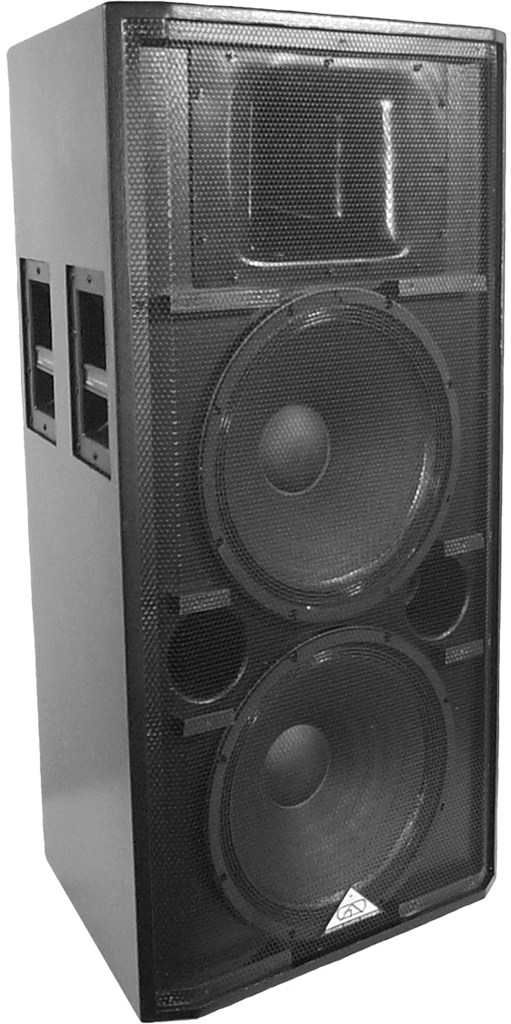

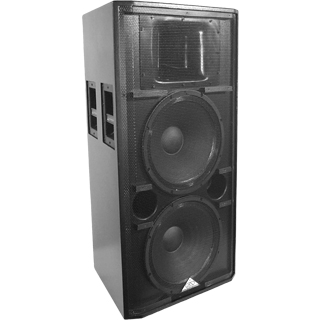

GT-3026™

Description[±]

The GAD GT-3026™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-3026™ is available with optional 2x2, 3/8"-16 threaded mounting points.

Application[±]

The GT-3026™ is designed for medium to far-field applications where a smooth, dynamic range is needed. The GT-3026™ is an ideal choice for either analog or digital reproductions where clean, clear response is a must. The GT-3026™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	900 Watts
(Program):	1800 Watts
(Peak to Peak):	3600 Watts

Frequency Response:	40 Hz - 16 kHz

Sensitivity (1W @ 1M):	101 dB SPL

Nominal Impedance:	4 ohms

Dispersion:	Horizontal 60°
	Vertical 40°

Components:
Low Frequency Driver	2 × 15" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon® & Biamp Switch

Product Dimensions:
(inches)	H - 44.00" W - 19.00" D - 22.25"
(millimeters)	H - 1117.60 W - 482.60 D - 565.15

Product Weight:	169.0 Lbs / 76.1 Kgs

Available Finish Configurations [±]

	GT-3026-6T
	Six Fly Tracks No Handles Or Pole Mount

	GT-3026-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
