GT-1220C™

Description[±]

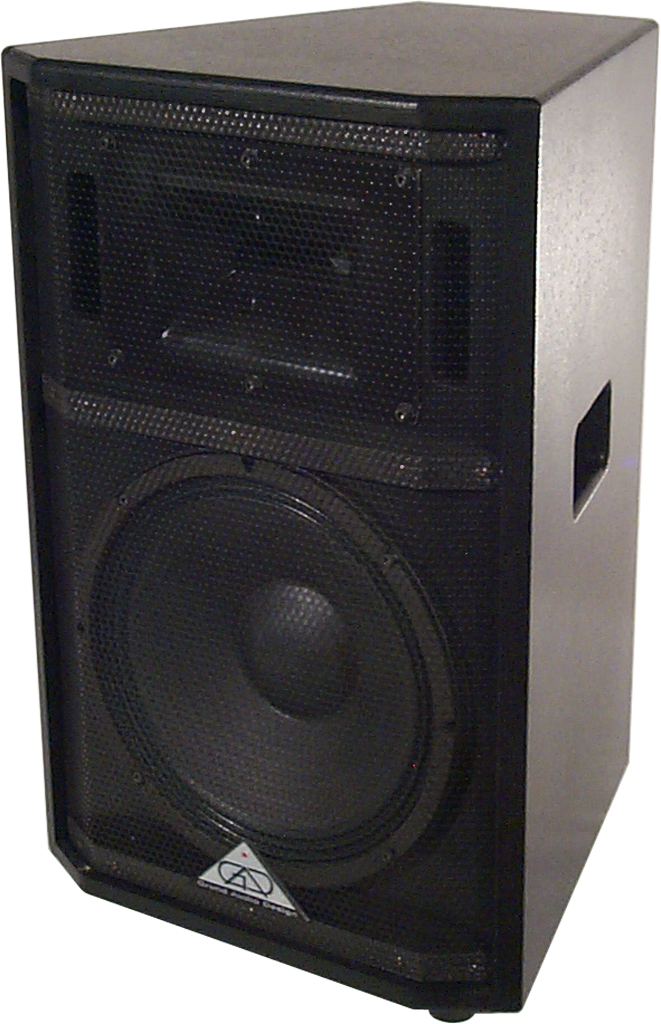

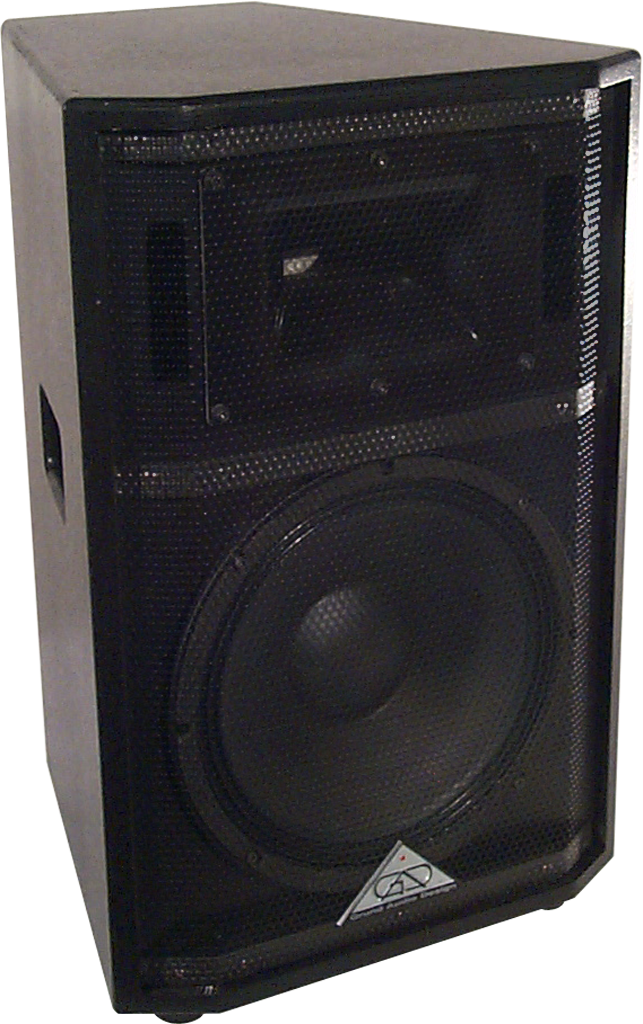

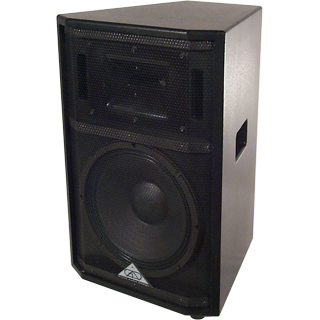

The GAD GT-1220C™ is a two-way, bass reflex loudspeaker system featuring flat frequency response, low distortion and wide dynamic range. Designed for permanent and semi-permanent applications.

The GT-1220C™ is available with several installation choices including 3/8"-16 threaded mounting points, or a U-Bracket.

Application[±]

The GT-1220C™ is designed for near field applications where a smooth, dynamic range is needed. The GT-1220C™ boasts wide-range dispersion for portable A/V events or even for side-fill or delay monitoring applications.

Specifications[±]

Power Handling :
(RMS):	400 Watts
(Program):	800 Watts
(Peak to Peak):	1600 Watts

Frequency Response:	60 Hz - 16 kHz

Sensitivity (1W @ 1M):	100 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 80°
	Vertical 40°

Components:
Low Frequency Driver	12" Cone
Cone Material	Weather-Treated paper


Components:
High Frequency Driver	2" Compression Driver

Crossover Frequency:	1.5 kHz

Enclosure Type:	Trapezoidal 15°

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 23.75" W - 15.75" D - 15.75"
(millimeters)	H - 603.25 W - 400.05 D - 400.05

Product Weight:	62.0 Lbs / 27.9 Kgs

Available Finish Configurations [±]

	GT-1220C-3F
	With Three 2 x 2 Fly Points

	GT-1220C-HP
	With handles and pole mount

	GT-1220C-O
	No Handle or Pole Mount

	GT-1220C-U
	With U-Bracket

	GT-1220C-6F
	With Six 2 x 2 Fly Points

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles	BAMP Bi-amp Option
