GA-4041NGS™

Description[±]

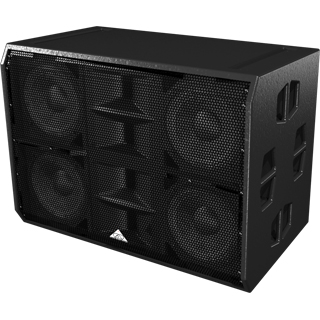

The Grund Audio Design GA-4041NGS™ is a ground-stacking line array speaker system designed for use by regional touring companies who require fast, inexpensive setup, or where reliable hanging points are unavailable.

Extraordinary economy is realized in four ways. No expensive flying hardware is attached. Two line array units fit in each cabinet. Set-up and tear-down can be accomplished in just a few minutes. Expensive riggers are not required.

Unit essentially contains two line-array systems properly angled and built into a single cabinet. One additional unit may be securely stacked on top, making a properly aligned array consisting of eight each hi-frequency horns and 10" drivers.

CAUTION: This product is not designed or constructed for overhead suspension. DO NOT SUSPEND THIS PRODUCT OVERHEAD UNDER ANY CIRCUMSTANCES.

Application[±]

The GA-4041NGS™ may be used alone, double stacked or in conjunction with line arrays, like the GA- 1021N™ or GA-2021N™. Units are ideal for mid-sized venues between 1800 and 2500 seats as well as theaters, outdoor amphitheaters, fairs, club dates and outdoor concerts where rigging isn't available.

Specifications[±]

Power Handling :

(RMS):

1200 Watts

(Program):

2400 Watts

(Peak to Peak):

4800 Watts

Frequency Response:

40 Hz - 18 kHz

Sensitivity (1W @ 1M):

104 dB SPL

Power Configuration:

Bi-Amp

Nominal Impedance:

4 ohms

Dispersion:

Horizontal 100°

Vertical Varies

Components:



Low Frequency Driver

4 × 10" Neo Cone

Components:



High Frequency Driver

4 × 1" Neo Compression Driver

Crossover Type:

Processor Specific

Crossover Frequency:

1.6 kHz

Enclosure Type:

Trapezoidal 2.5Ã�ÂÂ&d

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Black Tour Coat

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 SpeakonÃ�ÂÂ&r

Product Dimensions:

(inches)

H - 23.50" W - 33.13" D - 19.75"

(millimeters)

H - 596.90 W - 841.50 D - 501.65

Product Weight:

95.0 Lbs / 42.8 Kgs

Shipping Dimensions:

(inches)

H -25.00" W -34.25" D -22.25"

(millimeters)

H -635.00 W -869.95 D -565.15

Shipping Weight:

105.0 Lbs / 47.3 Kgs

Available Finish Configurations [±]

GA-4041NGS-T

Tour Coat
