Available Finish Colors

Black

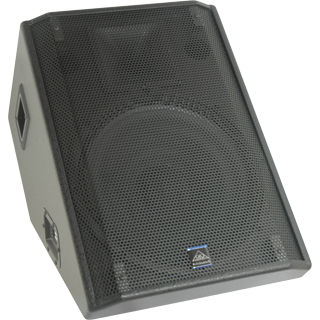

ACX-5M™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black and white for all models.

The ACX-5M enclosure operates at 150 watts RMS @ 8 Ohms, which enables the use of lower cost transducers, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 15” low frequency cone and a 1” compression driver for the high frequency. The rotatable 90° x 40° horn makes this model versatile for most applications. The ACX-5M is available with handles.

Specifications[±]

Power Handling :
(RMS):	150 Watts
(Program):	300 Watts
(Peak to Peak):	600 Watts

Frequency Response:	50 Hz - 18 kHz

Sensitivity (1W @ 1M):	99 dB SPL

Nominal Impedance:	8 ohms

Dispersion:	Horizontal 90°
	Vertical 40°

Components:
Low Frequency Driver	15" Cone


Components:
High Frequency Driver	1" Compression Driver

Crossover Type:	Passive

Crossover Frequency:	2.8 kHz

Enclosure Type:	Multi-angle

Enclosure Material:	MDF

Enclosure Construction:	Dado and Rabbet Joinery

Enclosure Finish:	2-part Epoxy Spatter Paint

Grille:	Powder-Coated, Perforated Steel

Connectors:	Two NL4 Speakon®

Product Dimensions:
(inches)	H - 23.75" W - 17.00" D - 15.88"
(millimeters)	H - 603.25 W - 431.80 D - 403.35

Product Weight:	41.0 Lbs / 18.5 Kgs

Shipping Dimensions:
(inches)	H -26.75" W -18.38" D -18.38"
(millimeters)	H -679.45 W -466.85 D -466.85

Shipping Weight:	46.5 Lbs / 20.9 Kgs

Available Finish Configurations [±]

	ACX-5M-H
	With handles no pole mount

Compatible Accessories
78-023 Mount Metal External Adaptor for 1.38" (35mm) Poles
