Technical Specifications (PDF)


Available Finish Colors

Black

White

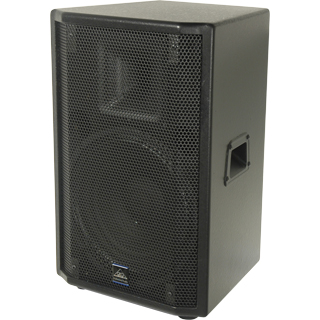

ACX-2™

Description[±]

The ACX Series loudspeakers are a budget friendly sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces. Manufactured in the USA, the ACX Series loudspeakers utilize MDF (medium-density fiberboard) enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black and white for all models.

The ACX-2 enclosure operates at 150 watts RMS @ 8 Ohms, which enables the use of lower cost transducers, thus making this loudspeaker an exceptional value for its intended application. This model incorporates two speakOn™ input connectors.

This model features a single 12" low frequency cone and a 1” compression driver for the high frequency.  The rotatable 90° x 40° horn makes this model versatile for most applications.  The ACX-2 is available with handles and a pole mount as well as three 2 x 2 flypoints.

A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available.

Specifications[±]

Power Handling :

(RMS):

150 Watts

(Program):

300 Watts

(Peak to Peak):

600 Watts

Frequency Response:

50 Hz - 18 kHz

Sensitivity (1W @ 1M):

99 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:



Low Frequency Driver

12" Cone

Magnet Material

Ceramic

Components:



High Frequency Driver

1" Compression Driver

High Frequency Horn

90° x 40°

Crossover Type:

Passive

Crossover Frequency:

2.8 kHz

Enclosure Type:

Trapezoidal 8.5°

Enclosure Material:

MDF

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

2-part Epoxy Spatter Paint

Grille:

Powder-Coated, Perforated Steel

Connectors:

Two NL4 Speakon®

Product Dimensions:

(inches)

H - 21.75" W - 14.00" D - 12.75"

(millimeters)

H - 552.45 W - 355.60 D - 323.85

Product Weight:

31.5 Lbs / 14.2 Kgs

Available Finish Configurations [±]

ACX-2-3F

With Three 2 x 2 Fly Points

ACX-2-HP

With handles and pole mount

This Product Has Been Discontinued
