Altar Clarity Series

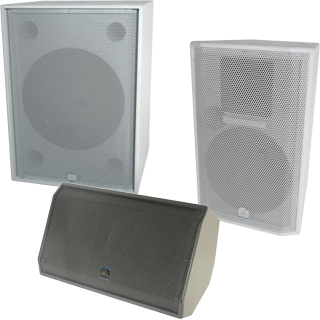

The Altar Clarity Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black, white, and unfinished (for painting or staining) for all models.
There are five new active models on the AC Series lineup carrying the benefit of power amplification that is optimized for the enclosure along with streamlined system cabling. Like the passive AC Series models, the new active models employ true, two-pole crossovers and pattern-controlled rotatable horns for accurate and smooth sounding musical performances and the spoken word. Vast assortments of model choices are available to fit every application.
For the self-powered (active) AC Series models, power ranges from 200-600 watts. The amp’s multichannel inputs include an XLR balanced microphone input, a ¼-inch line input, and RCA inputs for use with CD players and similar equipment. Any two sources can be mixed internally. With their durable, built-in power amplifiers, the AC Series active loudspeaker enclosures make a great sounding, versatile sound reinforcement solution.
The AC-10 and AC-12 are available in several versions to accommodate your specific application: no handles or pole mount, with U-Bracket mounting, with three 2 x 2 flypoints, or equipped for wall mounting. The AC-10M and AC-12M are available without handles or pole mount. The AC-15 two-way and AC-15S subwoofer are available without handles or polemount, or with three 2 x 2 flypoints. The AC-18S subwoofer is available without handles and pole mount or with six 2 x 2 flypoints.
A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available to make each installation easy and complete.
Expand Details | ||||||
---|---|---|---|---|---|---|
Model Number |
Drivers | Frequency Response |
Sensitivity | Watt / ohm |
Dispersion H / V |
Dimensions H x W x D |
AC-10 |
LF: 10" Cone HF: 1" Compression Driver HF:90° x 40° |
70 Hz - 18 kHz | 99 dB SPL | 150 / 8 Ω | 90° / 40° | 19.25 × 12.63 × 12.75 |
AC-12 |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 99 dB SPL | 250 / 8 Ω | 90° / 40° | 23.75 × 15.50 × 15.75 |
AC-15 |
LF: 15" Cone HF: 1" Compression Driver |
40 Hz - 18 kHz | 99 dB SPL | 250 / 8 Ω | 90° / 40° | 28.75 × 18.50 × 18.50 |
AC-10A |
LF: 10" Cone HF: 57-032 |
70 Hz - 18 kHz | 99 dB SPL | 150 / 8 Ω | 90° / 40° | 18.75 × 12.50 × 12.75 |
AC-10M |
LF: 10" Cone HF: 1" Compression Driver |
60 Hz - 18 kHz | 98 dB SPL | 200 / 8 Ω | 90° / 40° | 19.00 × 12.50 × 12.25 |
AC-12A |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 99 dB SPL | 250 / 8 Ω | 90° / 40° | 23.75 × 15.50 × 15.75 |
AC-12M |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 98 dB SPL | 300 / 8 Ω | 90° / 40° | 22.00 × 14.25 × 13.50 |
AC-15A |
LF: 15" Cone HF: 1" Compression Driver |
40 Hz - 18 kHz | 99 dB SPL | 300 / 8 Ω | 90° / 40° | 28.75 × 18.50 × 18.50 |
AC-15S | LF: 15" Cone | 40 Hz - 2000 Hz | 98 dB SPL | 300 / 8 Ω | Omni-Directional | 28.75 × 18.50 × 18.25 |
AC-18S | LF: 18" Cone | 35 Hz - 2000 Hz | 98 dB SPL | 1000 / 8 Ω | Omni-Directional | 31.75 × 23.25 × 19.63 |
AC-10MA |
LF: 10" Cone HF: 1" Compression Driver |
60 Hz - 18 kHz | 98 dB SPL | 150 / 8 Ω | 90° / 40° | 13.75 × 18.75 × 13.38 |
AC-12MA |
LF: 12" Cone HF: 1" Compression Driver |
50 Hz - 18 kHz | 98 dB SPL | 250 / 8 Ω | 90° / 40° | 17.00 × 26.50 × 16.50 |
