Technical Specifications (PDF)


Available Finish Colors

Black

Unfinished

White

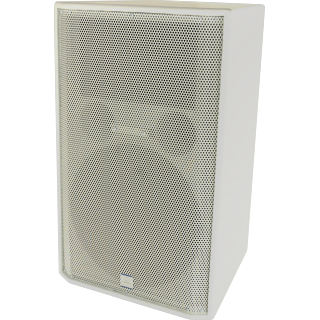

AC-15™

Description[±]

The Altar Clarity™ Series loudspeakers are a sound reinforcement solution for the 200 - 400 seat House of Worship, smaller meeting / presentation facilities, and similar spaces where live music reproduction demands a higher output performance. Manufactured in the USA, the AC (Altar Clarity) Series loudspeakers use 13-ply Baltic Birch enclosures and provide component concealing grilles for visual aesthetics and protection. Color options include black, white, and unfinished (for painting or staining) for all models.

The AC-15 employs a true, two-pole crossover and a pattern-controlled rotatable horn for accurate and smooth sounding musical performances and the spoken word. The Altar Clarity™ AC-15 is available without handles or polemount or with three 2 x 2 flypoints.

A comprehensive range of accessories, including eyebolts, wall mount brackets, crank style speaker stands, adjustable speaker stands, dual speaker mount poles, and both crank style and adjustable speaker poles are available to make each installation easy and complete.

Specifications[±]

Power Handling :

(RMS):

250 Watts

(Program):

500 Watts

(Peak to Peak):

1000 Watts

Frequency Response:

40 Hz - 18 kHz

Sensitivity (1W @ 1M):

99 dB SPL

Nominal Impedance:

8 ohms

Dispersion:

Horizontal 90°

Vertical 40°

Components:



Low Frequency Driver

15" Cone

Magnet Material

Ferrite

Cone Material

Weather-Treated paper

Components:



High Frequency Driver

1" Compression Driver

Crossover Type:

Processor Specific

Crossover Frequency:

2.8 kHz

Enclosure Type:

Trapezoidal 15°

Enclosure Material:

13-ply Baltic Birch

Enclosure Construction:

Dado and Rabbet Joinery

Enclosure Finish:

Textured Black

Grille:

Powder-Coated, Perforated Steel

Connectors:

5-Way Binder

Product Dimensions:

(inches)

H - 28.75" W - 18.50" D - 18.50"

(millimeters)

H - 730.25 W - 469.90 D - 469.90

Product Weight:

59.0 Lbs / 26.6 Kgs

Shipping Weight:

65.0 Lbs / 29.3 Kgs

Available Finish Configurations [±]

AC-15-3F

With Three 2 x 2 Fly Points

AC-15-HP

With handles and pole mount

AC-15-O

No Handle or Pole Mount
